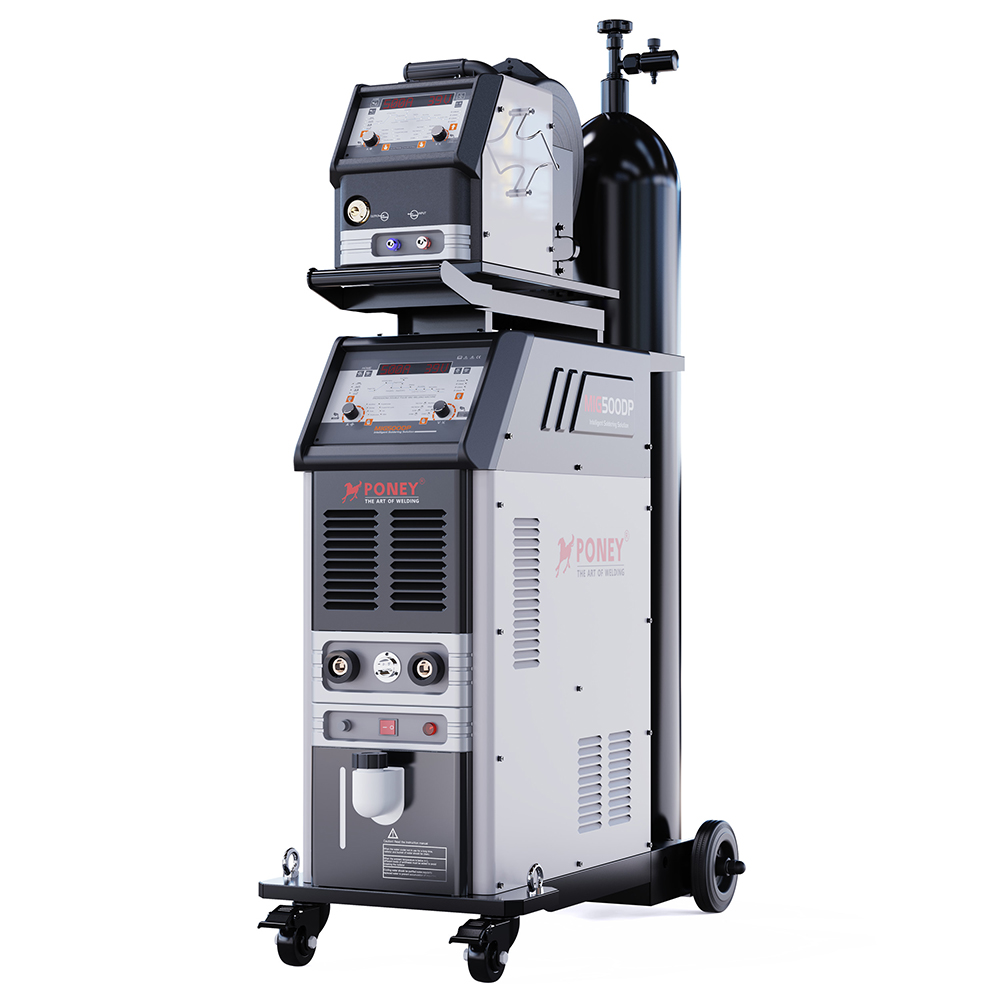

MAGICMIG-350DP/500DP

380V INDUSTRIAL MIG WELDING MACHINE MIG-500 DOUBLE PULSE WATER COOLING SYNERGIC SYSTEM

• Models


MAGICMIG-350DP

MAGICMIG-500DP

• Description：


1. 3-phase 380V, 50/60Hz; Multi-voltage optional (3-phase 220V/380V/440V), ideal for complex power grids

2. Professional MIG welding machine featured with IGBT module, separate wire feeder . water cooling and digital signal processing, supporting single pulse, double pulse and intelligent synergic control

3. Save & load up to 20 welding programs.You can preset and store optimal parameters for different workpieces, materials and welding tasks, realize one-click quick recall without repeated adjustment, which guarantees stable and consistent welding quality, saves tedious setup time and improves overall welding efficiency significantly.

4. 5 programs accessible via torch trigger; Separate wire feeder applicable for 20kg wire spool

5. Flexible remote welding available; Versatile welding processes optional: MIG, MAG, MIG Synergy, MIG Single Pulse, MIG Double Pulse, High-speed MIG Single Pulse, High-speed MIG Double Pulse, TIG, Spot Welding, MMA

6. Compatible with 9-axis robotic arm welding requirements, featuring high-precision welding control and stable signal transmission, perfectly meeting  the demand for automated and large-scale welding production.

7. Energy-saving & high-efficiency (efficiency increased by 35%)

8. Wide material compatibility: FeC, ER316, ER308, ER304, Galvanized steel sheet,pure aluminum, aluminum alloys, AlSi5(4043) , AlMg5(5356) , CuSi3, etc.

9. Applicable wire diameter: 0.8-1.6mm. Compatible with various welding electrodes.

10. High-capacity water tank and powerful pump for optimal cooling performance .

11. Multiple functions & protections: VRD, 2T/4T, Special 4T, welding thickness selection, inductance adjustment, hot start, arc force, burn back,pre-gas/post gas setting, over current protection, over voltage protection, thermal protection, phase loss protection.gas checking , wire checking .

12. Equipped with 4-roll wire drive for smooth wire feeding, delivering fast dynamic response,

13. Rugged & robust structure.Trolley-mounted with movable wheels for easy mobility

14. Deep penetration and excellent welding performance. smooth and neat weld seams, along with high strength and outstanding durability. Ideal for high-demand, quality-focused welding applications especially in heavy industry

15. The machine comes with a complete set of accessories including:

√ MIG torch +cable 3m ,installed stl liner 1,2-1,6mm

√ electrode holder ,2 m

√ earth clamp  3m

√ Interconnection power cable ,5 m

√ 7-pin control cable 5m

√ water pipe 5m

√ gas hose 6.5m

√ steel liner

√ Telflon liner

√ contact tips of steel welding

√ contact tips of alum welding

√ V-roller

√ U-roller

• Specifications：


Applications:

Equipped with graded high output and reliable load capacity, these industrial MIG welders excel in diverse heavy-duty industrial welding, widely applied to light/medium/heavy steel structures, construction steel components, heavy machinery parts, containers, sheet metal, pipelines, shipbuilding (auxiliary structures & hull segments), bridges, high-rises, thick-wall pipelines and metallurgical equipment. Ideal for medium-to-thick/thick carbon steel and low alloy steel, they deliver stable, efficient welding with excellent penetration to meet high standards of semi-industrial, mainstream and heavy industries.
