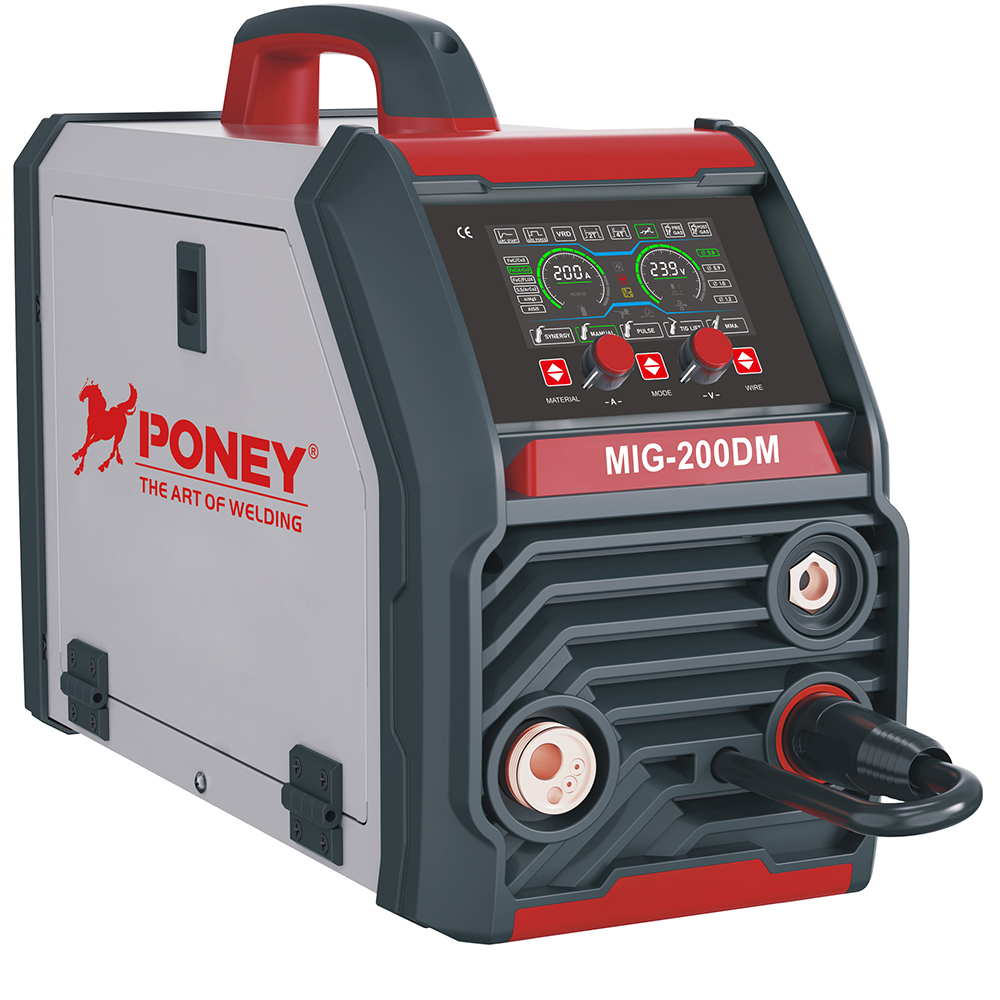

MIG-160DM/180DM/200DM

220V MULTI-FUNCTION INVERTER PORTABLE MIG WELDING MACHINE 200A  DIGITAL CONTROL SYNERGICSINGLE PULSE MIG WELDING MACHINE

• Description：


Professional Inverter MIG Welding Machine

1. Power Supply Flexibility

Engineered for global compatibility, this machine operates on a standard input power of 220V. For added versatility in diverse environments, it offers an optional voltage range supporting both 110V and 220V operation, functioning seamlessly on 50/60Hz electrical networks.

2. Advanced Inverter Technology

This is a professional-grade welding solution utilizing high-efficiency IGBT transistor technology combined with sophisticated digital signal processing (DSP). It features intelligent synergic control for precise parameter matching and includes a single-pulse welding option for enhanced arc stability. Operation is simplified via an intuitive 5-inch LED display.

3. Multi-Process Versatility

The machine supports a comprehensive range of welding processes to suit various applications:

• MIG Welding: Including Manual, Synergy, and Single Pulse modes.

• TIG Welding: LIFT TIG functionality.

• MMA Welding: Stick electrode welding.


4. Premium Material Compatibility

Specifically designed to handle high-quality welding materials with precision, including:

• FeC (Carbon Steel)

• AlSi5 (4043 Aluminum)

• AlMg5 (5356 Aluminum)


5. Wire & Electrode Specifications

• Wire Diameter: Optimized for 0.6mm to 1.0mm.

• Compatibility: Supports various welding electrodes, ensuring adaptability across different job requirements.


6. Integrated Wire Feeder System

Equipped with a built-in wire feeder mechanism designed to accommodate a standard 5kg wire spool, ensuring a continuous and tangle-free feeding process for uninterrupted workflow.

7. Comprehensive Feature Set

Loaded with advanced functions to ensure optimal performance and safety:

• Safety: Active VRD (Voltage Reduction Device) and Thermal Protection.

• Control Modes: 2T/4T functionality for MIG gun operation.

• Arc Management: Hot Start, Arc Force control, and adjustable Arc Voltage & Inductance.

• Gas Control: Adjustable Pre-gas and Post-gas flow settings.


8. Superior Welding Performance

Featuring a fast dynamic response, this machine delivers exceptional welding results characterized by:

• Minimal spatter

• Deep penetration

• Smooth and neat weld seams

• High strength and outstanding durability


It is the ideal choice for high-demand, quality-focused welding applications in light industrial and semi-industrial fields.

9. Ergonomic & Portable Design

Despite its robust capabilities, the unit features a lightweight, portable design, making it easy to transport and maneuver on job sites or within workshops.

10.The machine comes with a complete set of accessories including:

√ MIG torch +cable 3m ,

√ electrode holder ,1.8m

√ earth clamp 1.6m

√ gas hose 2m

√ contact tips

√ Face mask

√ Brush

• Specifications：



Applications:

The portable MIG gas shielded welder features extensive application scope, widely used in automotive body repair, light steel structure welding, sheet metal processing, guardrail and railing installation. Its compact and easy-to-move design makes it suitable for outdoor on-site repairs, agricultural machinery maintenance and small-batch metal fabrication, serving as a core tool for light industry, semi-industrial production and mobile welding tasks efficiently.
